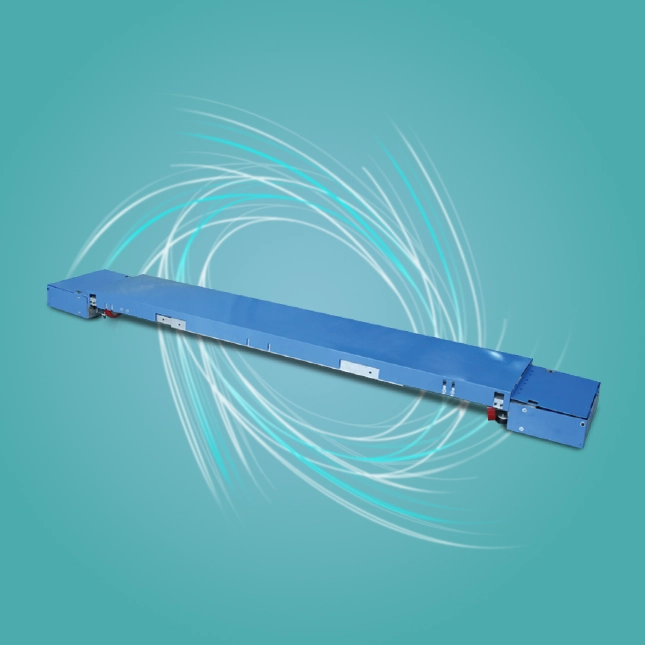

Solar Panel Cleaning Robots

Solar panel cleaning is now firmly established as an Operations & Maintenance(O&M) core element. All kinds of accumulates settle on solar panels from sand to traffic film, which reduces the output of the solar power plant and depending on the soiling type, can create hotspots on the modules. Hotspots are avoided as they not only reduce output but can also cause permanent cell failure within modules. The Premium Solar Panel Cleaning robot consists of a Nylon-based material brush ensuring no damage to the solar panel. The FRP frame carrying the brush moves along the length of the Solar Panel in the horizontal direction. The Cleaning robot consists of a DC Motor which rotates the wheels and moves the frame in a linear direction. Multiple robots can be installed in each row of the solar panel.

  • Designed for installation on 2-meter length Solar Panels
  • The cleaning robot length is adjustable up to +/- 250mm
  • Lightweight and durable product
  • Operates at a speed of 1 Km/hr with two DC motors of 12V and 100 rpm with a rated torque of 30 Kg-cm Can continuously work up to 90 mins after a single charge
  • A nylon brush is used to clean the panel which works with a DC Motor of 12V and 300rpm with a rated torque of 11 Kg-cm
  • A 12V power supply adapter is provided in the system for the power supply
  • Polyurethane wheels are used which are more durable and do not damage the solar panel
  • Side support wheels are provided to guide the frame and help move the solar panel in the linear direction

  • Zero Water: Complete water-free cleaning solution. It eliminates water supply fittings and saves water up to a quarter million liters per megawatt annually

  • Robust: Built to withstand harsh weather conditions. Will work under all weather conditions including desert sand storms and heavy rainfall. All metal body makes and aluminum components make it Robust and Lightweight at the same time

  • Self-Powered: Solar-powered, no external power required. It has independent solar panels at the docking station which powers the whole system

  • Smart Weather Sense And Centrally Controlled: Adjusts according to the weather. Automation technology and cloud/IoT connectivity allow Robot to sense weather and work accordingly

  • Zero Water: Complete water-free cleaning solution. It eliminates water supply fittings and saves water up to a quarter million liters per megawatt annually

  • Robust: Built to withstand harsh weather conditions. Will work under all weather conditions including desert sand storms and heavy rainfall. All metal body makes and aluminum components make it Robust and Lightweight at the same time

  • Self-Powered: Solar-powered, no external power required. It has independent solar panels at the docking station which powers the whole system

  • Smart Weather Sense And Centrally Controlled: Adjusts according to the weather. Automation technology and cloud/IoT connectivity allow Robot to sense weather and work accordingly
