Slew Drive Manufacturers and Suppliers

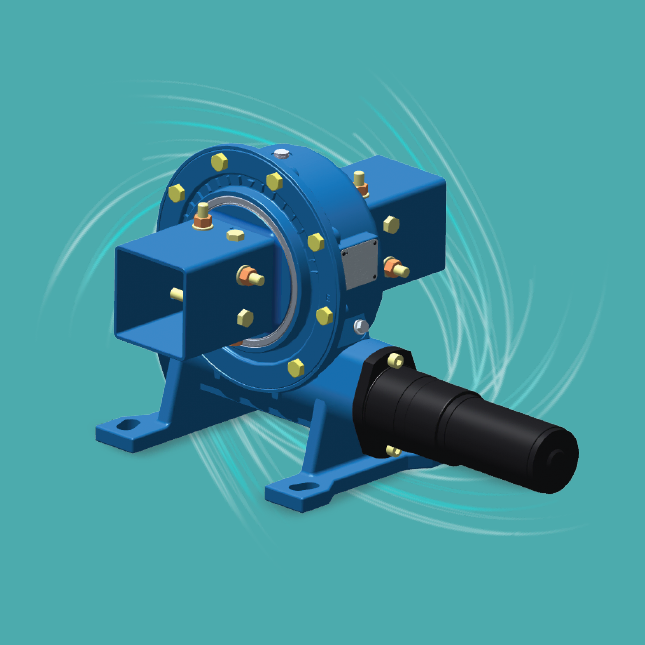

A Slew Drive is a type of gearbox that is specifically designed to handle high radial, axial, and moment loads. They are designed to withstand hold loads while also providing high rotational output torque. Slew drives consist of a worm gear mechanism, a metal bearing component, rubber seals, and sturdy housing to prevent environmental factors such as dirt, water, and dust from destroying the working components of the drive Slew drives operate fundamentally identical to worm gears. As a worm gear rotates, it translates rotational motion along its axis to rotary motion of the axis it is perpendicular to. The driven member (the worm wheel) consequently exhibits a decrease in speed and a proportional increase in torque from the worm gear. The output speed of the worm wheel is dependent upon the ratio of the threads on the worm gear to the number of teeth on the worm wheel
MECHANICAL RATING
| 1 | Type | Single Stage Worm Gear Speed Reducer |
| 2 | Input Speed | 4.7 RPM |
| 3 | Gear Ratio | 51:1 |
| 4 | Input Shaft Spline | 14 Tooth X 1.25 Module, Flank Centered, Internal Spline Per Din 5480.Designation: Hub, Din 5480-n 19x1.25x14x9h" |
| 5 | Transmission Efficiency, Min | 40% Under All Load and temperature conditions |
| 6 | Torsional Stiffness, Min | 1.0 Kn-mrad |
| 7 | Internal Rotational Friction, Max. | 10N-m at Input |
| 8 | Rotation Range of Low Speed Shaft | ±650 (+ 00 / - 30 ) from nominal center of range to internal mechanical hard stop |
| 9 | Angle Indicator | Nominal center of range (Zero Position) and ±100 increments to ±600 on each side |
| 10 | Backlash, Max. | 5M Rad (0.280) |
| 11 | Housing Material | Ductile(Nodular) Iron Casting |
| 12 | Seals | Resistant to UV and environmental degradation for design life |
| 13 | Lubrication | Synthetic Grease or Oil. Grease Fittings and/or oil service ports provided |
| 14 | Breather | Screw-in Type, PTFE Membrane Breather Vent |
| 15 | Design Life, Min. | 30 Years, Per Loading and Environmental Requirements |
| 16 | Environmental | Outdoor Rated, All Regions |
| 17 | Ingress protection rating, Min | IP55,PER IEC_60529 |
| 18 | Ambient Temperature Range | -40° C to 80° C |
| 19 | Maintenance | Maintenance free, No Re-lubrication required |
| 20 | Corrosion Protection, Housing | Rust Grade 5 or higher per ASTM D610m after 480 hour salt spray per ASTM |
TECHNICAL SPECIFICATIONS
| 1 | Annual torque histogram(n -m) | |
| 2 | 1000 | 6481 |
| 3 | 2000 | 9094 |
| 4 | 3000 | 1647 |
| 5 | 4000 | 564 |
| 6 | 5000 | 211 |
| 7 | Tracker holding, non-backdriving | 12000Nm |
| 8 | Dynamic radial rating, min | 15,000N |
| 9 | Dynamic radial rating, min | 20,000N |
| 10 | Dynamic radial rating, min | 9,000N |
| 11 | Static axial rating, min | 50,000N |
