Brushless DC Motors

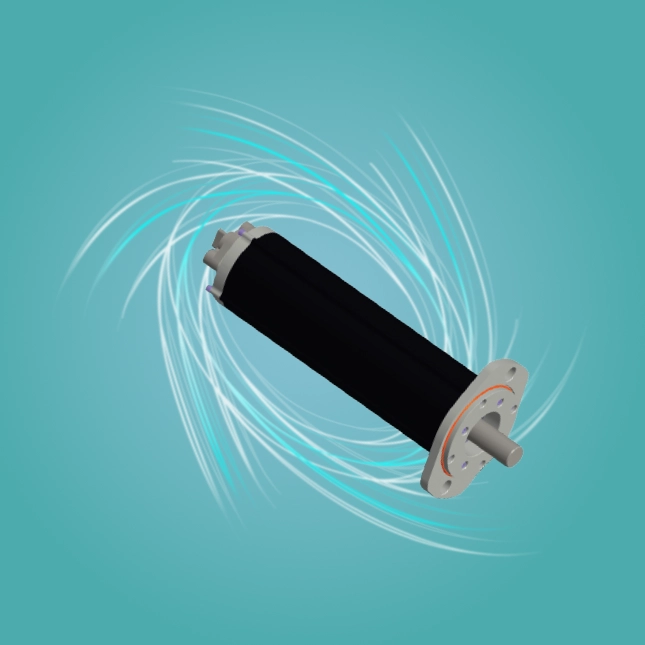

Machines ranging from simple devices like drills to complex equipment like industrial robots, all use brushless DC motors that convert electrical energy into rotational motion. Brushless DC motors, also referred to as BLDC motors, offer many advantages over their brushed counterparts. BLDC motors provide higher efficiency and require lower maintenance, thereby replacing brushed motors in many applications. BLDC motors are used in a wide range of machines, from simple devices like drills to complex equipment like industrial robots. They operate based on the principle of generating rotational motion through the attraction and repulsion of magnetic poles of permanent electromagnets. They require a complex controller to convert a single DC power to a three-phase voltage. Additionally, this BLDC motor is equipped with a 4-stage planetary gearbox with a reduction of 597:1 and minimum backlash at each stage to ensure smooth and silent operation.

  • High Rigidity And High

  • Torque: Employs caged bearings with a set design including

  • ring teeth, planetary gears for high rigidity, and output torque up to 310 Nm

  • High Precision: Circumferential Backlash for Planetary gearset - 10~12 micron

  • High Efficiency: Total efficiency of Planetary gearset - 97%

  • Low Noise: Uses planetary gears capable of meshing to

  • ensure smooth and quiet operation

  • Lifetime Lubrication: The protective class IP67 seal design avoids leakage problems and requires no lubrication during the product's lifetime

  • High Rigidity And High

  • Torque: Employs caged bearings with a set design including

  • ring teeth, planetary gears for high rigidity, and output torque up to 310 Nm

  • High Precision: Circumferential Backlash for Planetary gearset - 10~12 micron

  • High Efficiency: Total efficiency of Planetary gearset - 97%

  • Low Noise: Uses planetary gears capable of meshing to

  • ensure smooth and quiet operation

  • Lifetime Lubrication: The protective class IP67 seal design avoids leakage problems and requires no lubrication during the product's lifetime
